ArchiFrame

English | ARCHICAD 23-28 | WIN-MAC

ArchiFrame subscription one-year single license including all updates and unlimited support by e-mail and online meetings, without CNC support.

ArchiFrame

The full Archicad extension for wooden structures

AF Start

The ArchiFrame toolkit developed especially for architects

AF Edu for students

A light version of ArchiFrame for students

AF Trial

Try ArchiFrame for free for one month

Wood modeling & framing for better wood buildings

Transform an architectural drawing into a structure with realistic rendering and control the design right down to each individual plank. The ArchiFrame add-on transforms Archicad into a complete design tool for wooden structures so that architects and engineers can collaborate in a single synced Archicad file.

ArchiFrame can build the structural framework for walls, frames, column/beam structures, intermediate floors, and roof structures.

ArchiFrame makes it possible to infinitely reshape wooden planks and beams. Duplicate, rotate, and output wooden elements to CNC and manufacture quickly and easily with less errors.

Efficient BIM workflow takes you from the architect’s computer straight to the production line and helps you scale the manufacture of prefabricated elements.

Modeling tool for wood structural design

ArchiFrame offers you the best of both worlds: work off an architectural model (removing the need for expensive remodeling), or simply create a complete wood structure like a traditional timber home from scratch.

As well as timber new builds, ArchiFrame is suitable for renovation, refurbishment,and retrofit building projects. It works alongside your existing Archicad program and is the wood framing tool of choice for any kind of wooden building anywhere.

Archicad has plenty of powerful tools like TeamWork™, multiple import and export options, and the ability to overlay MEP engineering over a structural model for collision checking

Draft wood structures in one click and get instant design feedback.
Innovative features like automated and editable elevation save on project costs.
Everything you need is inside a single Archicad file — including 3D models and 2D elevations with semi-automated layouts and listings.
Individual planks can be hand-manufactured using ArchiFrame dimension drawings and cut lists, or produced directly with CNC.
Embrace the freedom to edit each individual piece. Print and change your graphics, layouts and blueprints whenever you need to.
Work with either metric or imperial measurements: ArchiFrame is fully compatible with imperial measurements (this can be updated via settings at any time).

Why use ArchiFrame?

Architectural design benefits

Design iteration is seamless with ArchiFrame: collaboratively update designs and models throughout the architectural and planning phases.
Use ArchiFrame to pass on key information quickly and concisely using accurate data and visual information.
Architects and engineers always work on one comprehensive design file, reducing scope for error.
ArchiFrame works for both big and small building projects and is an infinitely flexible design and modeling tool.
ArchiFrame has excellent visualization features, as well as the ability to further extend its native visualization with tools like RENDERLights.

Structural engineering benefits

No more copying models from one program to another: say goodbye to error-prone re-modeling from the architect’s original plans. Using ArchiFrame means having everything in the same model from day one which will save you time and money.
Modeling freedom: every plank is individual and fully editable, giving you infinite ﬂexibility and scope.
You can modify your design in any view — including element elevations.
Easy collision checking.

BIM software features and workflows

Take advantage of all the ﬂagship Archicad features you know and love: e.g. TeamWork™ available in both Windows and Mac.
Archicad users won’t need to re-learn the base program in order to use ArchiFrame — start creating immediately.
ArchiFrame software has already spread to over 20 countries, powered by its advanced tools and the lively Archicad customer community.
The continuous development and addition of new features to ArchiFrame ensures that the program is co-owned with its users.
Highly customizable BIM software via XML settings and scripts.

Element production benefits & CNC

We offer CNC support to help clients with element production, offsite building, and prefabrication.

Currently we offer CNC support for BTL, or BTLx, or BTL CLT, or EasyFrame EZF, or Hundegger BVX, or Hundegger BVX2, or MiTek EHX, or Randek SPL728, or Randek CDT4, or Spida SSF, or Weinmann WUP

BVN and BVX: Hundegger k2, speed cut, CLT-processing machine
BTL: Weinmann cut saw, Essetre cut saw, Stromab cut saw, Salvador cut saw
BTL: Mobi-One framing stations
BTL: Tigerstop cut saw as custom solution
BTL: CLT processing using DDX Software Solution’s products
(https://www.ddxgroup.com/)
WUP: Weinmann framing stations and cut saws
Randek cut saws
TXT: Sawteq board cutting station as A custom solution.

More details in our CNC guide. In addition to manual assembly that most of our customers are currently using, we offer CNC support.

Wooden wall framing & structures

Automatically drawn dimension lines
Automatically generated cut lists
Editable in elevation, floor plan and 3D
Projections available from front, top, back and below
Exterior paneling: weatherboards, exterior cladding & split paneling

Light-gauge steel framing

ArchiFrame also supports light-gauge steel framing, and this is something we are keen to expand on. Read our steel framing blog for more info and videos.

Multiple structural layers

Real world layers and rotations
Automatic connections at corners
Adjustable rules for studs and planks at corners
Re-angle and organize wooden beams and planks

Roof structures

Drawing planes to guide tilted pieces
Support for timber frame joint types (e.g. dovetail or tenon & mortise) and simpler angled cuts etc.
Create support trusses
Adjust rafters to the valley rafter and place valley & hip rafters easily

Timber flooring & floor structures

Floor beams automatically matched to the construction grid
Full control of every single beam
Steel beam cuts made using the ArchiFrame groove tool
Makes cresting wooden flooring as easy as creating walls
I-beams with plywood reinforcements (used in this example)

Output from BIM software directly to:

Dimension drawings for manual manufacturing
Cut lists (xls or txt)
Prints
CNC Hundegger bvn, btl and wup for Weinmann

Free tools included*

Fascia tool

Model fascia boards with Archicad’s profile beam tool. ArchiFrame learns your process and applies your fascia boards to any roof at the push of a button.

ArchiCorners

Add cover boards to your corners with precision

Add and edit planks

Create a wide range of planks

Convert to planks

Convert selected Archicad walls, beams, or columns into ArchiFrame planks

Cut and join

Cut and join planks in a variety of ways

Adjust endings

Combine planks and easily edit plank joins and endings

Adjust operators and markings

Join target planks to operators, or trim planks to size e.g. to fit a roof

Balk joints

Make balk joints, with either the balk intact or narrowed

Grooves

Cut grooves into specific elements

* AF Start will be available for free until October 2025, for at least two years.

„ArchiFrame's Fascia tool makes it much easier to model standard eaves and gable boards here at Kontio. Using this tool, we save time that we can then use on actual design work instead of messing around with small details. Using this tool, I calculate that we will save an average of 20 minutes per model, giving us on average 670 hours more annually for actual design work.″

Samuli Kokko
Project Lead, Kontiotuote Oy, Finland

Introducing your free tools

Fascia tool

Model fascia boards with Archicad’s profile beam tool. ArchiFrame learns your process and applies your fascia boards to any roof at the push of a button.

Using the fascia tool is easy:

Model a single roof with its related fascia boards using the Archicad roof and profile beam tool
Select the roofs and related fascia beams
Teach the process to ArchiFrame
Apply the learned process to any new roofs with a single click.

ArchiCorners

Use the ArchiCorners tool to help you model corners and save your own presets to speed up the modeling process.

To start the tool, there must be at least two selected walls. If the selection also contains roofs, those are used to trim the corner plank tops.

Read more…

Watch the video

Add and edit planks

Add planks to your design and customize them freely.

The tool includes a drawing plane concept to easily add angled roof structures to your floor plan.

Read more…

Watch the video

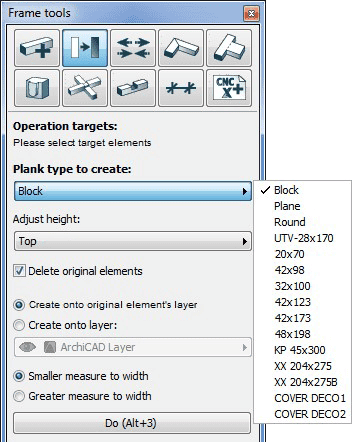

Convert to planks

Convert selected Archicad walls, beams or columns into ArchiFrame planks.

The converted planks can be processed with all the ArchiFrame tools and with a full ArchiFrame license it is even possible to generate exact CNC-data.

Read more…

Watch the video

Cut and join

Cut ArchiFrame-planks in 3D, the floor plan, sections/elevations with line(s) or a single click. Join back together if needed.

Read more…

Watch the video

Adjust endings

This tool combines planks from their ends, halving the angle and leaving the desired gap between the planks.

Read more…

Watch the video

Adjust operators and markings

This tool is used to adjust planks to another plank or any plane picked from the 3D-model. In addition, it allows adding markings to the connections.

Read more…

Watch the video

Balk joints

Connect intersecting beams narrowing both beams or just part of the connected beams.

Read more…

Watch the video

Grooves

This tool is like Archicad’s solid element operation/subtract except you get all the ArchiFrame features with it: detailed dimension drawing and CNC-output.

Read more…

Watch the video

Features chart

The features below are not included in AF Start

Element tools

Truss tools

Foundation drawing tools

Extended plank tools

Dimension drawings

Quantity takeoffs and cnc-files

AF Start – Perfect design package for creators

Try AF Start to help free up your time when designing houses in Archicad. Automate and speed up key processes so that you can spend more time on what matters: creating great houses. Completely free – try it yourself to see how its features work to support your designs.
